15g/M2 Zinc Coated 22 Gauge Galvanized Steel Wire Anti Acid 1Kg/ Roll
Product Details:
| Place of Origin: | China |
| Brand Name: | AGU |
| Certification: | ISO9001:2008 |
| Model Number: | 20GA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Tons |
|---|---|
| Price: | USD500-1000 Per Ton |
| Packaging Details: | Coil |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Tons per week |
|
Detail Information |
|||
| Material: | Low Carbon Steel Wire | Zinc Coating: | Min 15g/m2 |
|---|---|---|---|
| Grade: | Q195/Q235 | Gauge: | 20Ga |
| Coil Weight: | 20-25KGS | Usage: | Construction |
| Feature: | Electro Galvanized | Strength: | 33-55kgs/mm2 |
| High Light: | 22 gauge galvanized steel wire anti Acid,1Kg/ Roll galvanized tie wire,15g/m2 zinc coated steel wire |
||
Product Description
22 Gauge Construction Galvanized Binding Wires
22 Gauge X 1.0Kgs Roll Construction Galvanized Binding Wire
Ankai provide a varities of galvanized binding wires that made of high quality low carbon steel Q195
Wire gauge:0.7mm-4.0mm
Zinc Coating:15g-20g/mm2
Tensile Strength:340Mpa-420Mpa
Ankai Galvanized Binding Wire Features:
--High corrosion-resisting
--Acid resistance
--Smooth surface
--Longevity
--Firm zinc coating
Application:
This kind of galvanized wire is extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.
Binding Wire Gauge Comparison (SWG and BWG):
| Gauge No | ASWG (America standard Wire gauge ) | BWG (Birmingham wire Gauge | ISWG (Imperial standard wire gauge) |
| 8# | 4.114mm | 4.191mm | 4.064mm |
| 9# | 3.766mm | 3.759mm | 3.658mm |
| 10# | 3.429mm | 3.403mm | 3.251mm |
| 11# | 3.06mm | 3.048mm | 2.946mm |
| 12# | 2.679mm | 2.768mm | 2.642mm |
| 13# | 2.324mm | 2.413mm | 2.337mm |
| 14# | 2.032mm | 2.108mm | 2.032mm |
| 15# | 1.829mm | 1.829mm | 1.829mm |
| 16# | 1.578mm | 1.651mm | 1.626mm |
| 17# | 1.371mm | 1.473mm | 1.422mm |
| 18# | 1.206mm | 1.244mm | 1.219mm |
| 19# | 1.041mm | 1.066mm | 1.016mm |
| 20# | 0.883mm | 0.883mm | 0.883mm |
| 21# | 0.806mm | 0.813mm | 0.813mm |
| 22# | 0.726mm | 0.711mm | 0.711mm |
Binding Wire Common Packages options
Weight of coil/roll: 200kg, 100kg, 50kg, 25kg, 10kg, 2-8kg.
Packaging: Plastic film inside, Hessian or woven bag outside or as requirements.

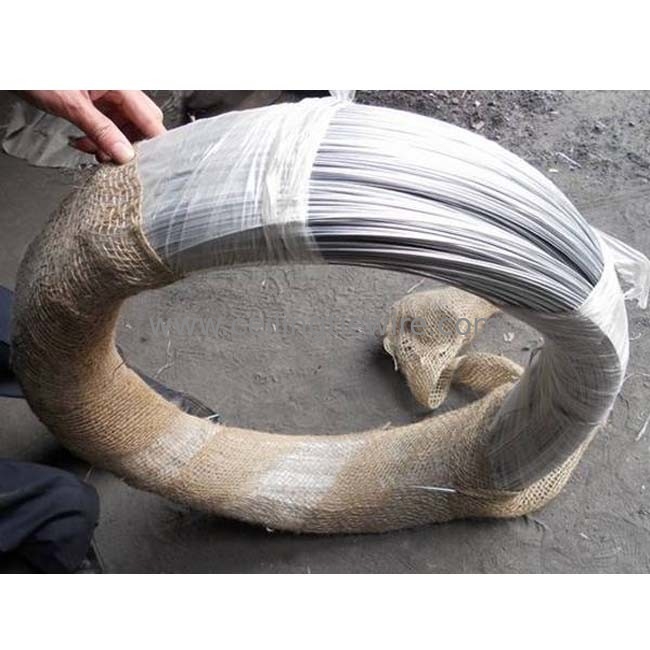

1.Coil wire: plastic inside,nylon cloth outside or hessian cloth outside.
Weigth:1-800kg/coil,also wooden pallet can be arranged.
2. Spool wire: using plastic spool, then plastic outside,finally in paper carton.
Weight: 5-500kg/spool,also wooden pallet can be arranged.
3. Special pakage: 5-20kg/coil, 5-20coils/bunch
Plastic outside,also can be hessian cloth outside or fiber container.
